Copper-steel Composite Plate Type Electrode Conductive Arm

Copper-steel Composite Plate Type Electrode Conductive Arm

Copper-steel composite plate type electrode conductive arm is used in steelmaking electric arc furnace, ladle refining furnace, ferroalloy refining furnace, etc.

The electrode diameter is ￠300mm-￠600mm, the current is 7.7KA-70KA, and there are 9 specifications in total.

Serial Number	Graphite electrode diameter mm	Electrode distribution circle diameter mm	Electric furnace transformer rated capacity KVA	Electric furnace transformer secondary side current KA	Reference electric arc furnace capacity t	Overall dimension of cross arm section mm	Electrode release cylinder pressure MPa/medium	Cooling water consumption m3/h	Cooling water fitting specifications
1	￠300	￠620-￠800	3200	7.7	5	430*260	5/water based 0.4/air	8	G1/2"
2	￠350	￠700-￠950	5500-8000	12.2-17.7	10	430*260	5/water based 0.4/ai	8	G1/2"
3	￠350-￠400	￠800-￠1120	8000	17.7	15	450*260	5 oil, water based	10	G3/4"
4	￠400	￠800-￠1150	9000-12500	17.32-26.7	20	500*360	5 oil, water based	14	G3/4"
5	￠400-￠450	￠900-￠1150	12500-18000	26.7-30.28	30	530*360	5 oil, water based	16	G3/4"
6	￠500	￠900-￠1050	25000-40000	37.9-48.6	50	680*450	5/Water based. Water glycol	22	G1"
7	￠500-￠550	￠1050-￠1100	31500-50000	42.7-54.4	75	700*450	5/Water based. Water glycol	28	G1"
8	￠600	, , ￠1100-￠1200	50000-63000	54.4-62.1	90	800*450	6/Water based. Water glycol	30	GL1/4"
9	￠600	￠1100-￠1200	63000-80000	62.1-69.9	100	800*450	6/Water based. Water glycol	32	GL1/4"



1. The product is welded with copper-steel composite plates to form an electrode conductive arm, in which the copper layer is used for electrical conduction, and the steel layer is used to support various mechanical forces.
2. There is a water interlayer in the electrode conductive arm frame, which is cooled by water and can withstand the burning of the water flame of the electric furnace.
3. The electrode clamping adopts a butterfly spring, which drives the hoop to hold the electrode tightly, and releases it pneumatically or hydraulically. The clamping force is large and the electrode clamping is reliable.
4. The electrode clip is made of chrome-copper alloy or copper-steel composite plate, and the internal water cooling has a long service life.

Order Items:

1. The orderer can choose to order according to the parameters in Table 2-1. If there are different requirements, please put them forward in the contract.
2. The order electrode arm is a part of the electric furnace or ladles furnace ferroalloy refining furnace. When ordering the electrode conductive arm, the user should also provide other related dimensions, such as

• The distance between the center of the electrode column and the center line of the furnace
• The connection form and related dimensions of the electrode arm and the electrode column
• Hydraulic medium and pressure or compressed air pressure, etc.

Electrode Arm for Arc Furnaces

Electrode Arm for Arc Furnaces

The electrode arm for arc furnaces is made of a copper-steel composite plate or aluminum-steel composite plate. A new type of cross arm on the ultra-high power electric arc furnace with a greatly simplified structure.

Copper-steel Composite Electrode Arm for Arc Furnaces Features:

1. The clamping force of the electrode clamping mechanism is large, and there is good electrical contact between the electrode and the copper chuck.

2. The electrode center circle is small, which not only reduces the inductive pressure drop on the electrode but also reduces the erosion of refractory materials.

3. Set up a reliable insulating layer in the appropriate position, so that the current will not be dispersed, the gap arc will not be generated, and the parts will not be damaged by heating.

Copper-steel Composite Conductive Cross Arms Have:

1. Good structure rigidity, reducing cross arm vibration, safe and reliable work;

2. Reduce resistance and reactance value and improve electrical efficiency;

3. Concise and compact structure, easy to install, use and maintain.

Electrode Arm for Arc Furnaces mainly has the Following Advantages:

1. The use of a hollow section and double-layer copper-steel composite plate greatly reduces the skin effect, reduces the impedance, and improves the electric heating efficiency;

2. The box-shaped structure of the hollow section and the internal water cooling channel greatly enhance the strength of the cross arm, which is conducive to the adjustment of the electrode movement without causing vibration, and is conducive to the stability of the arc;

3. The weight is lighter than the traditional steel pipe cross arm, and the inertia is small, which is conducive to the frequent lifting and lowering of the electrode.

Used Industrial Furnace for Sale

Used Industrial Furnace for Sale

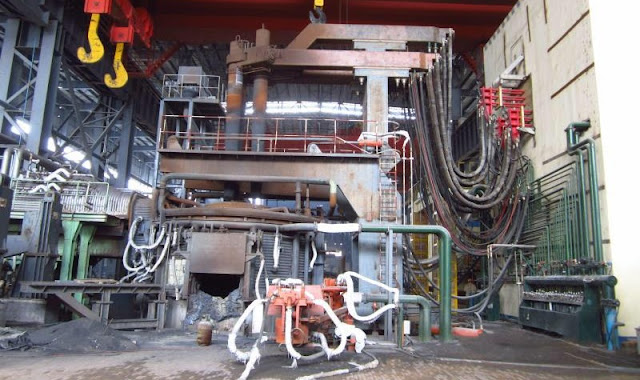

Used industrial furnace(EBT-30t High Power Steelmaking Electric Arc Furnace)for sale

Used industrial furnace (Electric arc furnace) for sale. Electric arc furnaces are the most widely used steel furnace around the world. It can be used to smelt high-quality steel and other special steel.

Advantages

1. Capable of producing the full range of steel-grades
2. Not dependent on a particular type of charge (scrap, sponge, iron, pig iron, hot metal),
3. Low capital outlay,
4.  The melting process can be programmed and automated
5. High efficiency and flexibility
6. The use of EAFs allows the steel to be made from a 100% scrap metal feedstock. This greatly reduces the energy required to make steel when compared with primary steelmaking from ores.
7. Another benefit is flexibility: while blast furnace cannot vary their production by much and can remain in operation for years at a time, EAFs can be rapidly started and stopped, allowing the steel mill to vary production according to demand.

Although steelmaking arc furnaces generally use scrap steel as their primary feedstock, if hot metal from a blast furnace or direct-reduced iron is available economically, these can also be used as furnace feed.

1. Main Technical Parameters of the Used Industrial Furnace (Electric Arc Furnace) for Sale.

Item	Unit	Numerical value	Remark
Rated Capacity	t	30
Average tapping	t	35	12 to 15% of steel retained
Maximum tapping	t	40
Furnace body
Inside diameter of the furnace	mm	φ4200
Overall height of furnace shell	mm	～3000
Outlet diameter	mm	100
Electrode lift system
High Power Graphite Electrodes	mm	400	High Power Graphite Electrodes
Electrode distribution circle diameter	mm	1100
Electrode maximum moving distance	mm	～2800
Electrode up/down the speed	m/min	6/4
Electrode lift drive method		Hydraulic, proportional valve
Tilt mechanism
The maximum tilt angle of tapping	Degree	20
The maximum tilt angle of slag	Degree	15
Tipping/slag tilting speed	°/s	1/1.5
Fast tilt back speed	°/s	≥3
Furnace cover lifting and unscrewing mechanism
Lifting stroke	mm	400
Ascent/Descent Speed	m/min	4.8/4.8
Unscrew and swivel speed	°/s	≤4
drive mode		hydraulic
Electric furnace transformer
Rated Capacity	kVA	16000
Primary side voltage	kV	10
Secondary voltage	V	435～330～225
Rated secondary current	A	28000
Voltage regulation		On-load electric voltage regulation	Domestic pressure regulating switch
Way out		Inner seal, side outlet
Hydraulic system
Work pressure	MPa	10
Working medium		water-ethylene glycol
Cooling water system
Water pressure	MPa	0.4～0.6
Inlet/return water temperature	℃	<35/50
Water consumption	m3/h	～450
High current line
Impedance average	mΩ	≤2.46
Three-phase unbalance	%	≤5

2. The Use Environment of the Used Industrial Furnace (Electric Arc Furnace)for Sale

The altitude does not exceed 2000m;

Ambient temperature: within the range of 0～40℃;

The monthly average of the daily maximum relative humidity in the wettest month in the area of use is not more than 90%;

There is no conductive dust, explosive gas, or corrosive gas that can seriously lose metal and insulation around;

Obvious vibration and bumps.

Electric Arc Furnace Price in India

Electric Arc Furnace Price in India

New Technology of Electric Arc Furnace Equipment

Steelmaking Electric Arc Furnace Equipment New Technology:

Parameter selection of electric arc furnace Optimal design of tubular water-cooled furnace wall and eccentric bottom (EBT) tapping copper-steel composite conductive cross arm cluster type large-section water-cooled cable Optimized structure Short network (energy-saving type) proportional valve Hydraulic system PLC basic level+ Process-level industrial computer control frequency conversion control technology, network technology.

Business scope: turnkey project, complete set design, complete set/partial supply, transformation service, induction/maintenance training, technical consultation.

Steelmaking Electric Arc Furnace Equipment Overview:

10t three-phase electric arc steelmaking furnace, the structure adopts the furnace cover to remove the top charging, the tapping nozzle taps, and the right operation. Electrode lifting is mechanical, furnace body tilting and furnace cover lifting and rotation are hydraulic, and electrical control is controlled by PLC (Siemens) regulator.

Equipment Composition: electric furnace transformer, short net, electrode lifting device, electrode cross arm, furnace cover lifting and rotating device, furnace body, furnace body tilting device, ladle, tapping car, cooling water system, compressed air system, hydraulic system, upper material system, high-voltage power supply system. The low-voltage electrical control system, basic level automation and computer control system, etc.

Main Features of the Electric Arc Furnace Price in India :

This steelmaking electric arc furnace can use alkaline or acid lining as required and can melt carbon steel, high-quality carbon steel, alloy steel, stainless steel, and other varieties.

This electric arc furnace equipment has the following main features:

The electric furnace equipment is the furnace cover unscrewing, top charging, tapping nozzle, and semi-elevated arrangement.

The copper-steel composite conductive cross arm is used, and the whole is a column type.

Large-section water-cooled cables are used.

The whole furnace shell is adopted, with a firm structure and good rigidity.

Using water-cooled furnace cover structure, long life.

The most advanced intelligent PLC electrode regulator is adopted to ensure the accuracy and reliability of the electrode automatic system to the greatest extent.

The tilting of the electric furnace body and the rotation of the furnace cover is hydraulically driven to improve the stability and reliability of the equipment.

EBT-30t High Power Steelmaking Electric Arc Furnace

Main Technical Parameters of the Equipment

Item	unit	Numerical value	Numerical value
Rated Capacity	t	30
Average tapping	t	35	12 to 15% of steel retained
Maximum tapping	t	40
Furnace body
Inside diameter of furnace	mm	φ4200
Overall height of furnace shell	mm	～3000
Outlet diameter	mm	100
Electrode lift system
Electrode diameter	mm	400	High Power Graphite Electrodes
Electrode distribution circle diameter	mm	1100
Electrode maximum moving distance	mm	～2800
Electrode up/down speed	m/min	6/4
Electrode lift drive method		Hydraulic, proportional valve
Tilt mechanism
The maximum tilt angle of tapping	Degree	20
The maximum tilt angle of slag	Degree	15
Tipping/slag tilting speed	°/s	1/1.5
Fast tilt back speed	°/s	≥3
Furnace cover lifting and unscrewing mechanism
Lifting stroke	mm	400
Ascent/Descent Speed	m/min	4.8/4.8
Unscrew and swivel speed	°/s	≤4
drive mode		hydraulic
Electric furnace transformer
Rated Capacity	kVA	16000
Primary side voltage	kV	10
Secondary voltage	V	435～330～225
Rated secondary current	A	28000
Voltage regulation		On-load electric voltage regulation	Domestic pressure regulating switch
Way out		Inner seal, side outlet
Hydraulic system
work pressure	MPa	10
working medium		water-ethylene glycol
Cooling water system
water pressure	MPa	0.4～0.6
Inlet/return water temperature	℃	<35/50
water consumption	m3/h	～450
High current line
Impedance average	mΩ	≤2.46
Three-phase unbalance	%	≤5

Electric Arc Furnace Price in India Equipment Use Environment:

The altitude does not exceed 2000m;

Ambient temperature: within the range of 0～40℃;

The monthly average of the daily maximum relative humidity in the wettest month in the area of use shall not be greater than 90%;

There is no conductive dust, explosive gas or corrosive gas that can seriously lose metal and insulation around;
